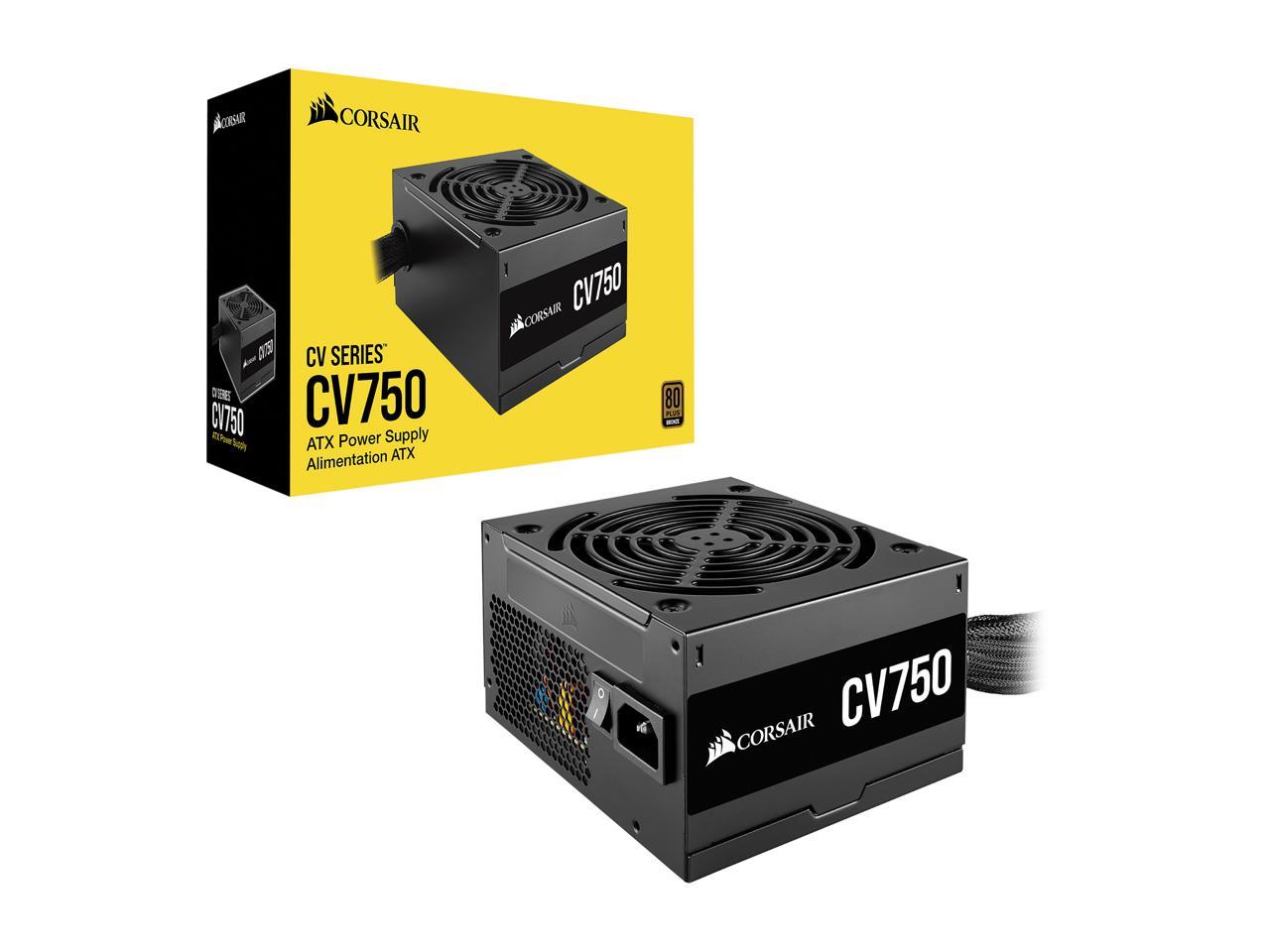

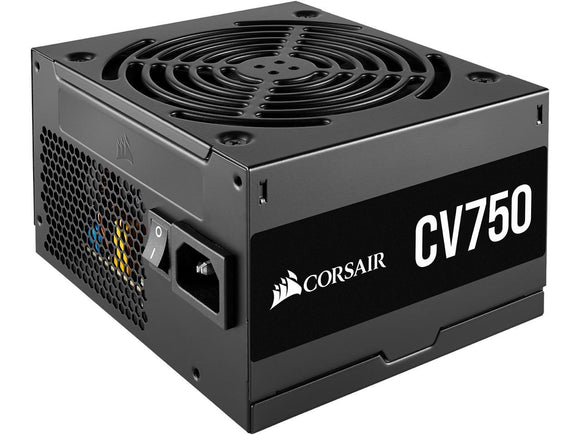

CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply
CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply

CORSAIR CV series 750W ATX12V / EPS12V 80 PLUS BRONZE Certified Non-Modular CV750 80 PLUS Bronze ATX Power Supply

Model
Brand CORSAIR
Series CV series
Model CP-9020237-NA
Details
Type ATX12V / EPS12V
Maximum Power  750W
Fans  1
Main Connector  24Pin
+12V Rails  Single
PCI-Express Connector  2 x 6+2-Pin
SATA Power Connector  7
Modular  Non-Modular
Efficiency  > 85%
Energy-Efficient 80 PLUS BRONZE Certified
Input Voltage 100 - 240 V
Input Frequency Range 47 - 63 Hz
Input Current 10A - 5A
Output +3.3V@24A, +5V@20A, 12V@62A, -12V@0.3A, +5VSB@3A
Dimensions 4.92" x 5.91" x 3.39"
Max PSU Length 125 mm
Weight 4.19 lbs.

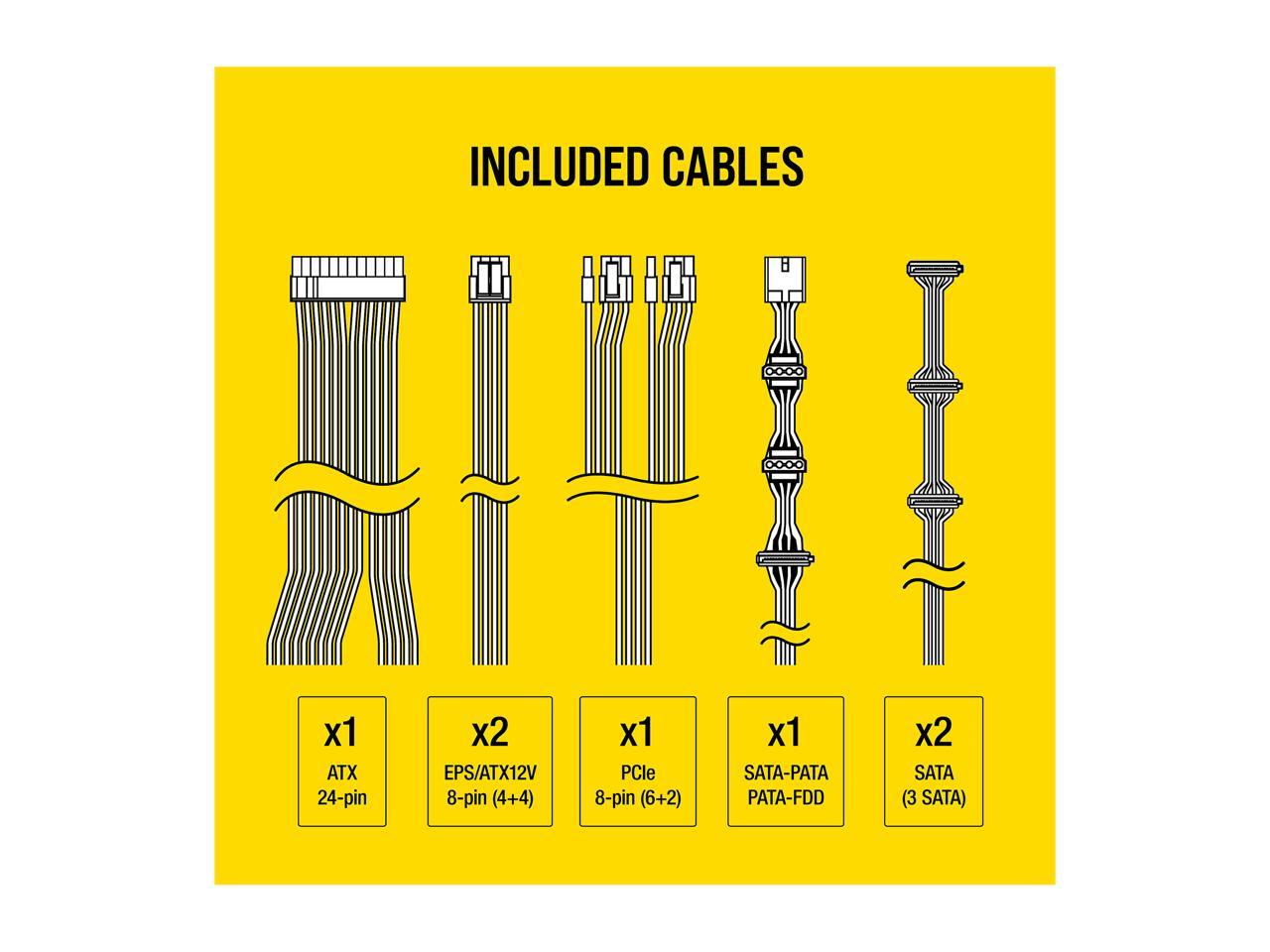

Features
Connectors 1 x 24 pin ATX
2 x 8 pin (4+4) EPS (CPU)
2 x 8 pin (6+2) PCIe
7 x SATA
Features 80 PLUS Bronze Certified: Provides up to 88% operational efficiency, generating less heat and lowering your energy costs.

Full Continuous Power: CORSAIR CV Series power supplies are guaranteed to deliver their full rated wattage of continuous power.

Low-Noise Cooling: A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

Compact Casing: 125mm length ensures an easy fit in almost all modern PC cases.

Black Sleeving and Casing: Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.
Package Content CV Series ATX Power Supply
AC Power Cord
Mounting Screws
Warranty Documentation
Additional Information
Date First Available April 27, 2021
